Ceriani 230mm Front Brake

Marketed in competition to the Fontana hubs in the '60's. The 230mm is a very robust unit with an aluminium alloy hub and magnesium brake plates as standard. The brake plates have large integral air scoops with the warm air exiting through 20 central slots. Ideal for 350 and 500cc four strokes

Brake lining area:
230mm dia x 25mm wide x 2 sides
Alloy/Magnesium: 8.3 kg
Spindle Bearings:

Aluminium: Self colour or Gold anodised
Magnesium: Black Chromate

Total width across brake plates: 126 mm
Wheel rim:
36 spoke holes, use 10 gauge spokes
Magnesium Brake Shoes - Save 300g
15mm Spindle Bearings

Ceriani 230mm Front Brake

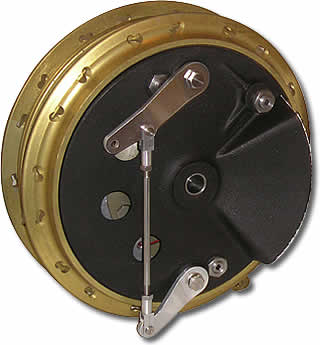

Ceriani 230mm Front Brake in Alloy - Gold anodised

Technical Sheets

All Technical Sheets are in Portable Document Format (PDF).

If you are unsure on how to use this format please go to the
Price List section.

For a complete list of technical information please select from the following technical sheets.

pdfMPL Italian Exotica 4 Leading Shoe Front Hub Data

pdfMPL Manx Hubs Data Sheet

Alternatively, go to the Price Lists section which contains information and downloadable price lists with order forms for our products.
