Fontana 180mm Front Brake
A miniature version of the 210mm. Although originally offered for 50 and 125cc, it is quite adequate for 250cc singles.

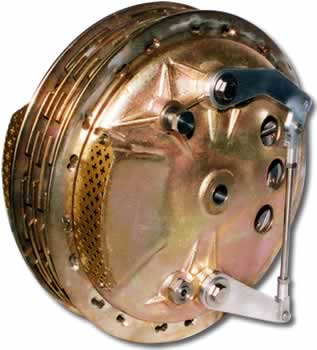

Fontana 180mm Front Brake in Magnesium
|
Brake
lining area:
|
180mm dia x 22mm wide x 2 sides |
|
Weight:
|
Magnesium: 4.6 kg |
| Aluminium: 5.6 kg | |
|
Spindle
Bearings:
|
15mm |
|
Colour:
|
Magnesium: Black Chromate |
| Aluminium: Self Colour | |
| Total width across brake plates: | 114 mm |
|
Wheel
rim:
|
36 spoke holes, use 10 gauge spokes |
|
Options:
|
Magnesium Brake Shoes - Saves 200g. This option is at extra cost. |
For a complete list of technical information please refer to the following Data Sheet.
MPL
Italian Exotica 4 Leading Shoe Front Hub Data
