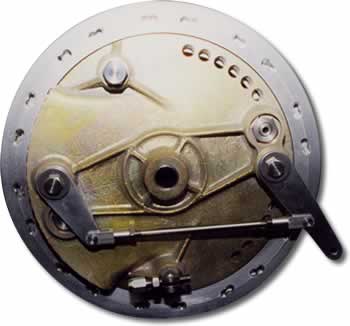

Fontana 210mm Rear Brake
This is the matching partner to the 250mm front hub with typical Fontana interrupted finning. Cast from the ORIGINAL pattern work, the brake plate has a neat integral air intake scoop.
Fontana 210mm Rear Brake
|
Brake
lining area:
|
210mm dia x 40mm wide |
|
Weight:
|
Magnesium: 5.5 kg |
| Aluminium: 6.7 kg | |
|
Spindle
Bearings:
|
17mm |
|
Colour:
|
Magnesium: Black Chromate |
| Aluminium: Self Colour | |
|
Sprocket
Mounting:
|
7 off M8 studs on 92mm PCD |
| Total width of complete
assembly is: |
139mm |
|
Wheel
rim:
|
40 spoke holes, use 10 gauge spokes |
|
Options:
|
Magnesium Brake Shoes
- Saves 150g Combination of Alloy Hub / Magnesium Brake Plate |
For a complete list of technical information please refer to the following Data Sheet.
MPLItalian Exotica
2 Leading Shoe Rear Hub Data
For information on pricing of all hubs, follow this link.
|
||||||||||||||||||||
|
||||||||||||||||||||
