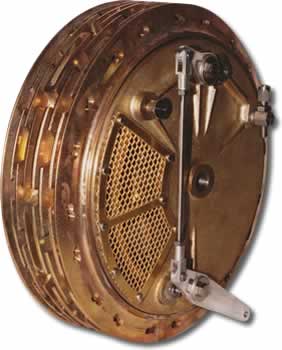

Fontana 250mm Front Brake
The ultimate European drum brake. Developed by Daniel Fontana for the works 500's of the late '60's. Used on early works Trident racers, and TT marshal's bikes. Our hubs are faithful replicas of the originals with the dramatic interrupted finning and central ventilation ducts.
Fontana 250mm Front Brake im Magnesium
|
Brake
lining area:
|
250mm dia x 30mm wide x 2 sides |
|
Weight:
|
Magnesium: 9.4 kg |
| Aluminium: 11.5 kg | |
|
Spindle
Bearings:
|
17mm |
|
Colour:
|
Magnesium: Black Chromate |
| Aluminium: Self Colour | |
Total width across brake
plates: |
127mm |
|
Wheel rim: |
40 spoke holes, use 10 gauge spokes |
|
Options:
|
Magnesium Brake Shoes
- Saves 400g Combination of Alloy Hub / Magnesium Brake Plates P.O.A |
For a complete list of technical information please refer to the following Data Sheet.
MPL
Italian Exotica 4 Leading Shoe Front Hub Data
For information on pricing of all hubs, follow this link.
 |
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
|
