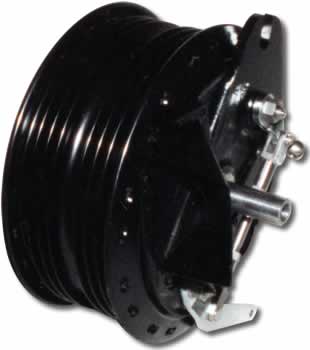

Manx 7" 4LS Front
This double sided brake was used only for the 1962 machines. We manufacture this assembly with the aid of the original Norton drawings, and we have made detail improvements to resist cracking. We have also deleted the lock ring, which was prone to rub on the brake plate, and come undone if the wheel was put in the wrong way round !
Manx 7" 4LS Front
|
Brake
lining area:
|
7" dia x 1.5/8" wide x 2 sides |
|
Weight:
|
Magnesium: 7.65 kg |
| Aluminium: 8.75 kg | |
|
Spindle
Bearings:
|
17mm |
|
Finish:
|
Stove enamel black, semi gloss |
Total width across brake plates: |
132mm |
|
Wheel
rim:
|
40 spoke holes, use 8/10 gauge butted spokes |
|
Options:
|
Magnesium Brake Shoes
- Saves 300g This option is at additional cost |
For a complete list of technical information please refer to the following data sheet.
For information on pricing of all hubs, follow this link.
 |
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
|
