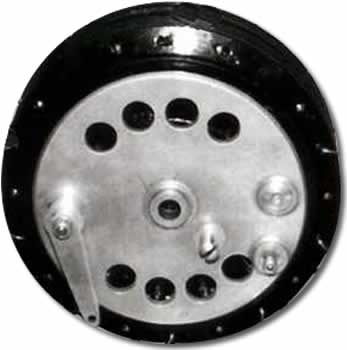

Seeley Front Drum
This double sided front drum assembly has a magnesium hub with polished aluminium alloy brake plates. Although each brake plate is of single leading shoe type they have a clever floating cam design which provides a powerful servo action.
Seeley Front Drum
|
Brake
lining area:
|
8.1/4" dia x 1.1/4 " wide x 2 sides |
|
Weight:
|
7.4kg |
|
Spindle
Bearings:
|
17mm |
|
Finish:
|
Black chromate hub, polished alloy brake plates. |
Total width across brake plates: |
124 mm |
|
Wheel rim: |
40 spoke holes, use 10 gauge spokes |
|
Options: |
Magnesium Brake Shoes
- Saves 420g Above option at additional cost. |
For a complete list of technical information please refer to the following data sheet.
For information on pricing of all hubs, follow this link.
 |
|
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
|
